Light integrated into architecture

AICCI Light surface

Made to order in Finland, AICCI Light surface transforms walls, ceilings and architectural features into seamless luminous surfaces. Available in laminated glass or acrylic, each element is tailored to the project’s visual, technical and durability requirements.

With sizes up to 3000 × 2000 mm and a profile of only 30 mm, Light surface offers exceptional design freedom for museums, exhibitions, hospitality environments, public spaces, lift interiors and outdoor applications.

Frames are manufactured from anodised aluminium and finished to project requirements, with options ranging from custom anodised colours to specialised metal and timber frame solutions. Smaller formats can also be specified as impact-resistant luminaires using laminated glass construction.

AICCI light panel cladding for FAB Helsinki's interior and exterior entrance
AICCI light panel cladding for FAB Helsinki's interior and exterior entrance.

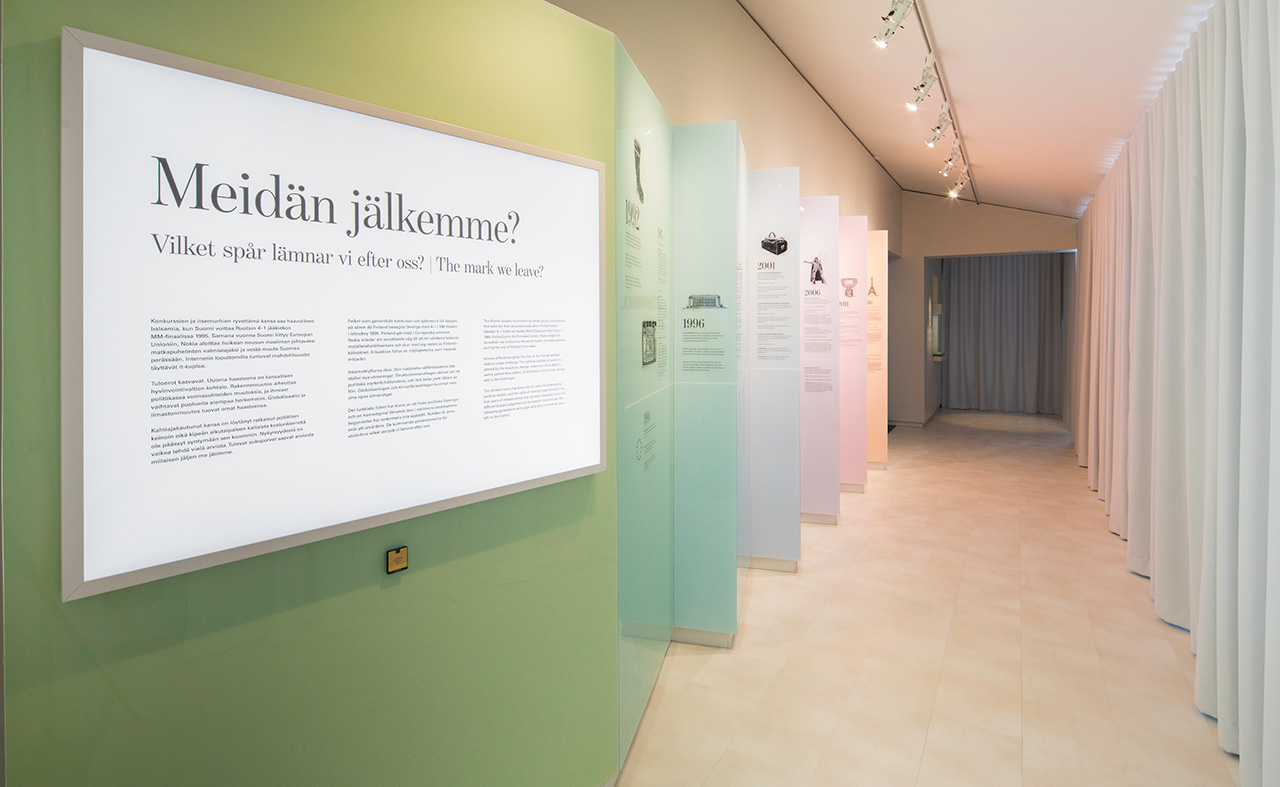

AICCI Lights Reference, National Museum of Finland, Story of Finland exhibition, exhibition lights, picture 14AICCI Lights Reference, National Museum of Finland, Story of Finland exhibition, exhibition lights, picture 14

Specifications

Applications

  • Suitable for indoor and outdoor use
  • Enclosure classes: IP 40, IP44 and IP54. If your application requires a higher IP rating, we can manufacture the light panel with additional enclosure protection.

Dimensions

  • Customised sizes
  • Maximum size:  2000 x 3000 mm (78.74″ x 118.00″)
  • Thickness: 30 mm (1.18″)
  • Frame width: 30mm (1.18″)

Shape

  • The AICCI LP2 light panel can be a symmetrical or asymmetrical polygon with straight sides (e.g., square, rectangle, triangle, pentagon, hexagon).
  • Curved shapes, including circular panels or panels with rounded sides, are not supported in the standard AICCI LP2 model. If your project requires a round or curved light panel, please contact us to explore a custom solution.

Structure

  • Frame made of extruded aluminium
  • The structure is designed to be opened and dismantled for servicing. All components, including lighting and electrical parts, can be replaced and recycled.
  • Maintenance must be carried out by a qualified professional.

Materials

  • Frame: untreated, anodised (see our shades), powder coated (RAL colour), or Decoral-coated (wood or stone texture)
  • Illuminated surface: safety glass, acrylic, polycarbonate, or PETG
  • Printing options: digital, silkscreen, or lens printing (for effects like image flips, animation, and 3D depth)

Lighting

  • Light sources selected based on your application and budget: white, tunable white, RGB, RGBW, or smart lighting
  • Project-specific LEDs can also be used
  • Only professional-grade LEDs are used, with luminous efficacy up to 200 lm/W
  • Backed by AICCI manufacturer’s warranty

Lighting control and electrical connection

  • Control options: on/off, potentiometer dimming, Casambi, DALI, DMX, or project-specific systems
  • Electrical connection: fixed or plug-in cable
  • Control gear is external

Optics

  • Options for the illuminated surface: opal laminated glass, opal acrylic, microprism, opal acrylic + microprism, polycarbonate
  • Unified Glare Rating (UGR) between 16 and <19 according to EN 12464-1
  • Optical material combinations affect glare rating
  • Special solutions available on request

Installation

  • Surface-mounted, concealed fixing, edge-screwed, or hinged

Circularity

  • Durable construction designed for longevity
  • LEDs can be replaced without removing the panel
  • Materials and light sources can be adapted to new uses
  • All components are removable, sortable, and recyclable
  • Maintenance and modifications must follow AICCI guidelines and be performed by qualified personnel
  • Professional-grade LEDs ensure long-term availability or compatibility with equivalent products
  • External control gear ensures flexibility and serviceability

Contac us for tailored solutions

Contact us to discuss your project needs and explore tailored solutions. Our team is here to help you select the best materials and technologies for your specific application.
